Product Category
Precision Turned Components
Our core craft — CNC and Traub turning to ±0.01 mm.
Overview

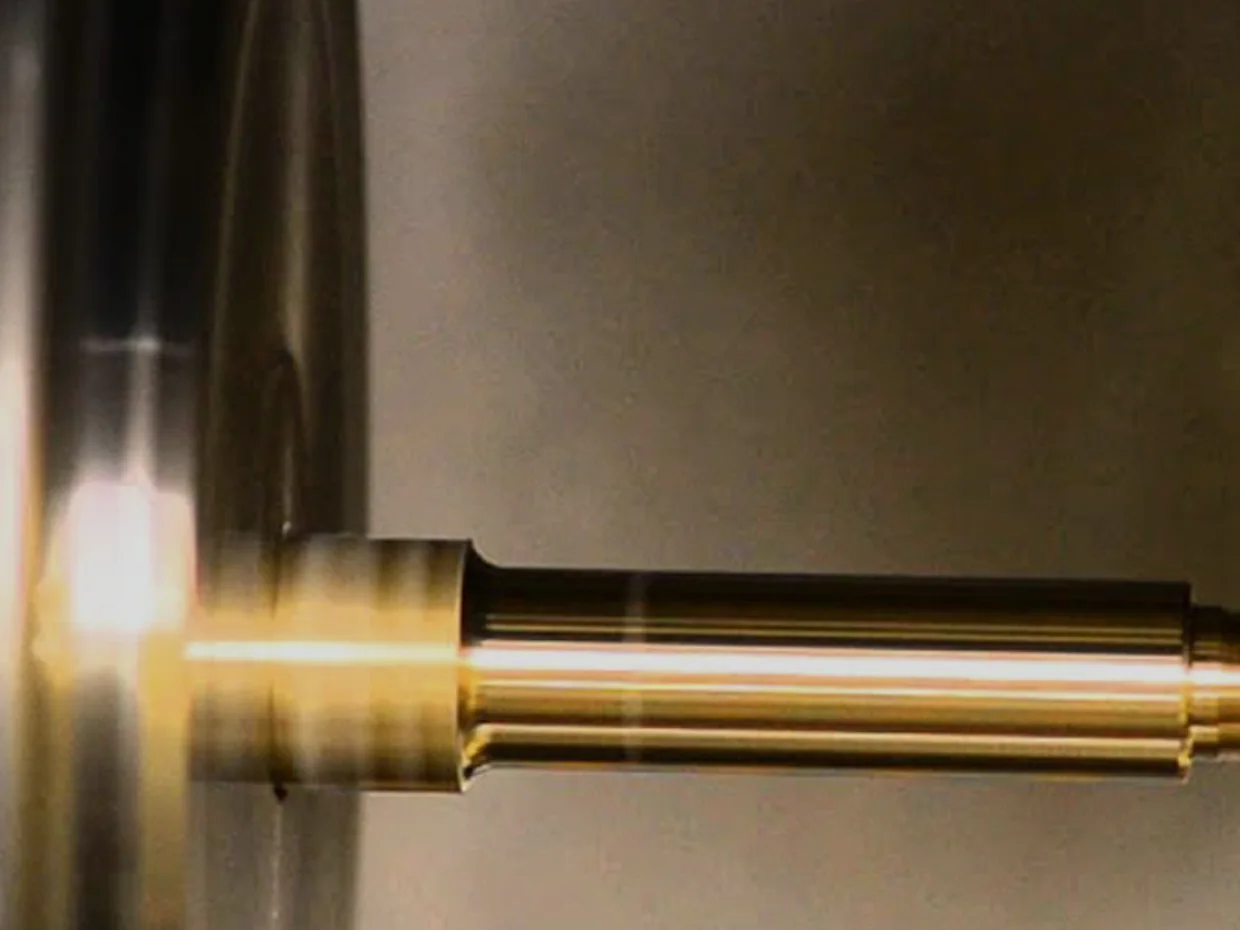

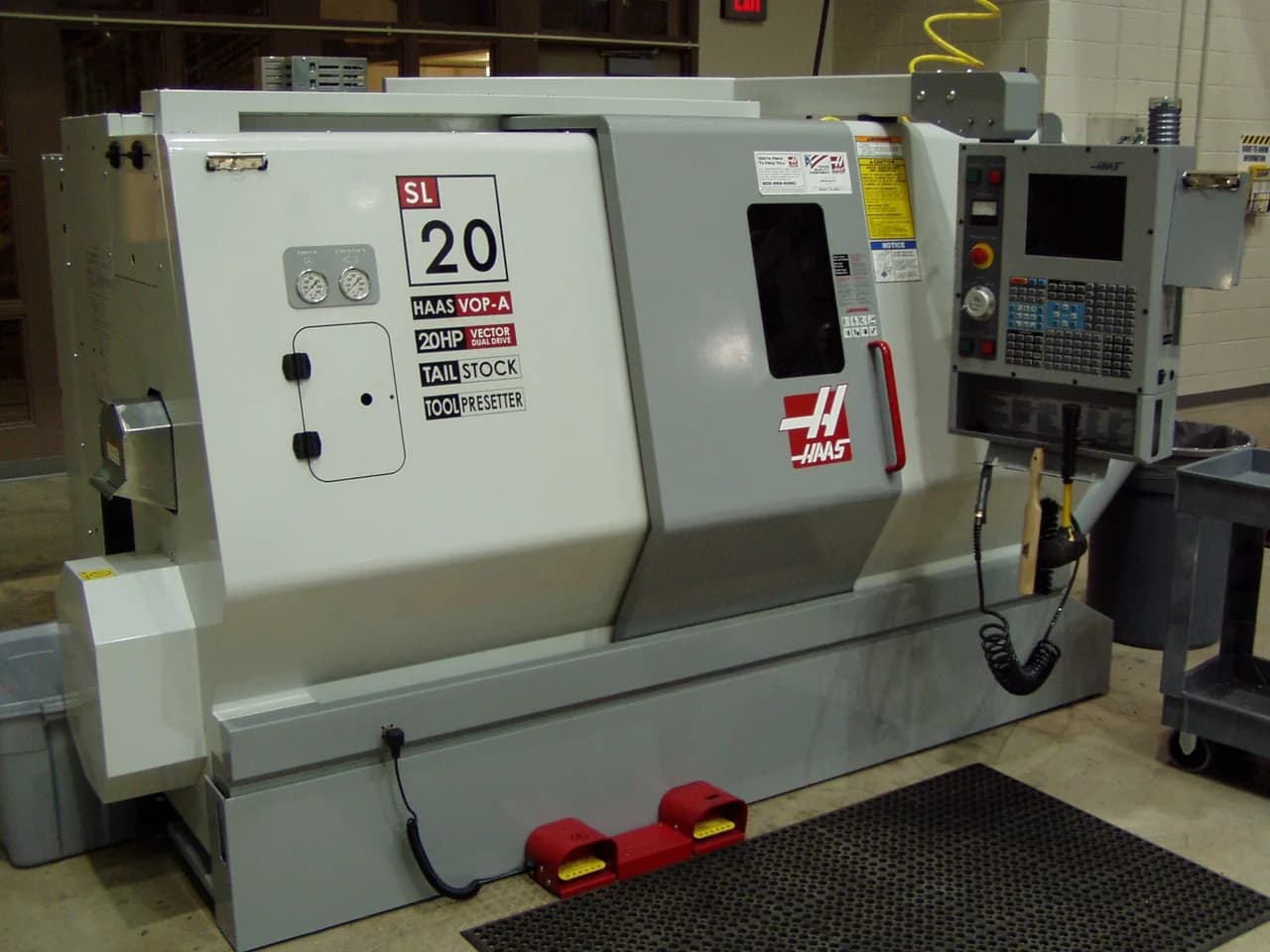

This is the capability Rajhans was founded on: take a customer drawing, set up a CNC or Traub machine, and hold the print — diameter, concentricity, thread and finish — across a hundred thousand parts.
We machine free-cutting brass, stainless and mild steel from Ø3 to Ø65 mm bar, with in-process inspection at the machine and final inspection on calibrated instruments. If your part spins on a lathe, it belongs here.
Typical Applications
- Electrical and electronic terminals
- Instrumentation and metering parts
- Pneumatic and hydraulic components
- Fasteners and special hardware
- Any made-to-print turned part
Specifications
| Material grades * | CW614N (CuZn39Pb3), CW617N, IS 319 Grade I/II |
|---|---|
| Size range * | Ø3 mm – Ø65 mm bar stock |
| Threading * | BSP, BSPT, NPT, Metric, UNC/UNF — gauged |
| Tolerance * | Up to ±0.01 mm on critical dimensions |
| Finishes * | Natural, nickel, tin or chrome plating; deburred & polished |
| Concentricity * | ≤ 0.02 mm TIR on critical features |
| Surface finish * | Ra 0.8 µm achievable on turned faces |
* Indicative specification — confirm against your drawing.
Product Gallery
Have a drawing in this category?
Send it across — our engineers reply with pricing, lead time and manufacturability feedback within 24 working hours.
