Fittings
Leak-tight connections in BSP, NPT and metric threads.
Overview
Fittings are where a thread either seals or it does not. Every Rajhans fitting is cut on calibrated tooling and checked with thread plug and ring gauges, so BSP stays BSP and NPT stays NPT — lot after lot.

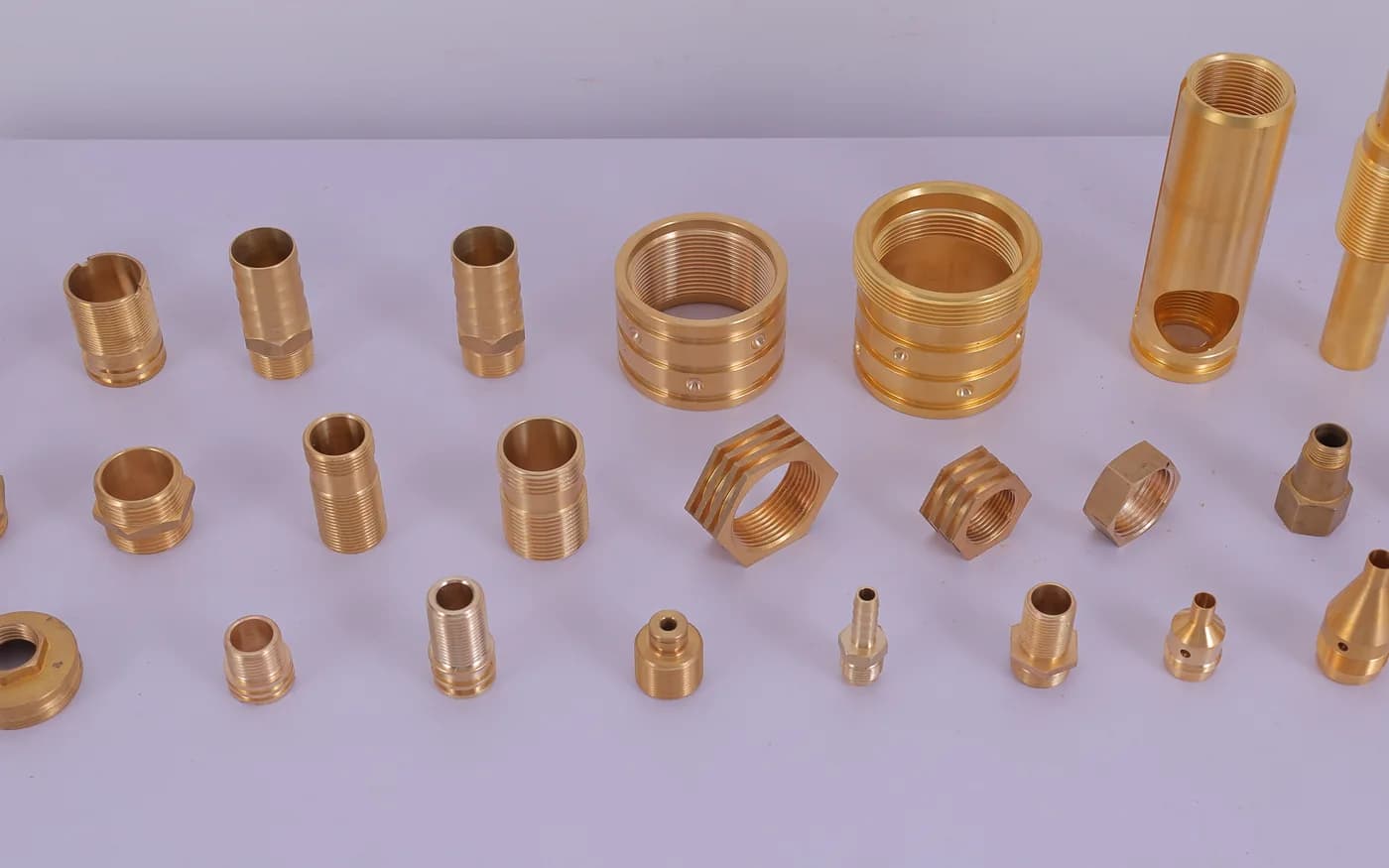

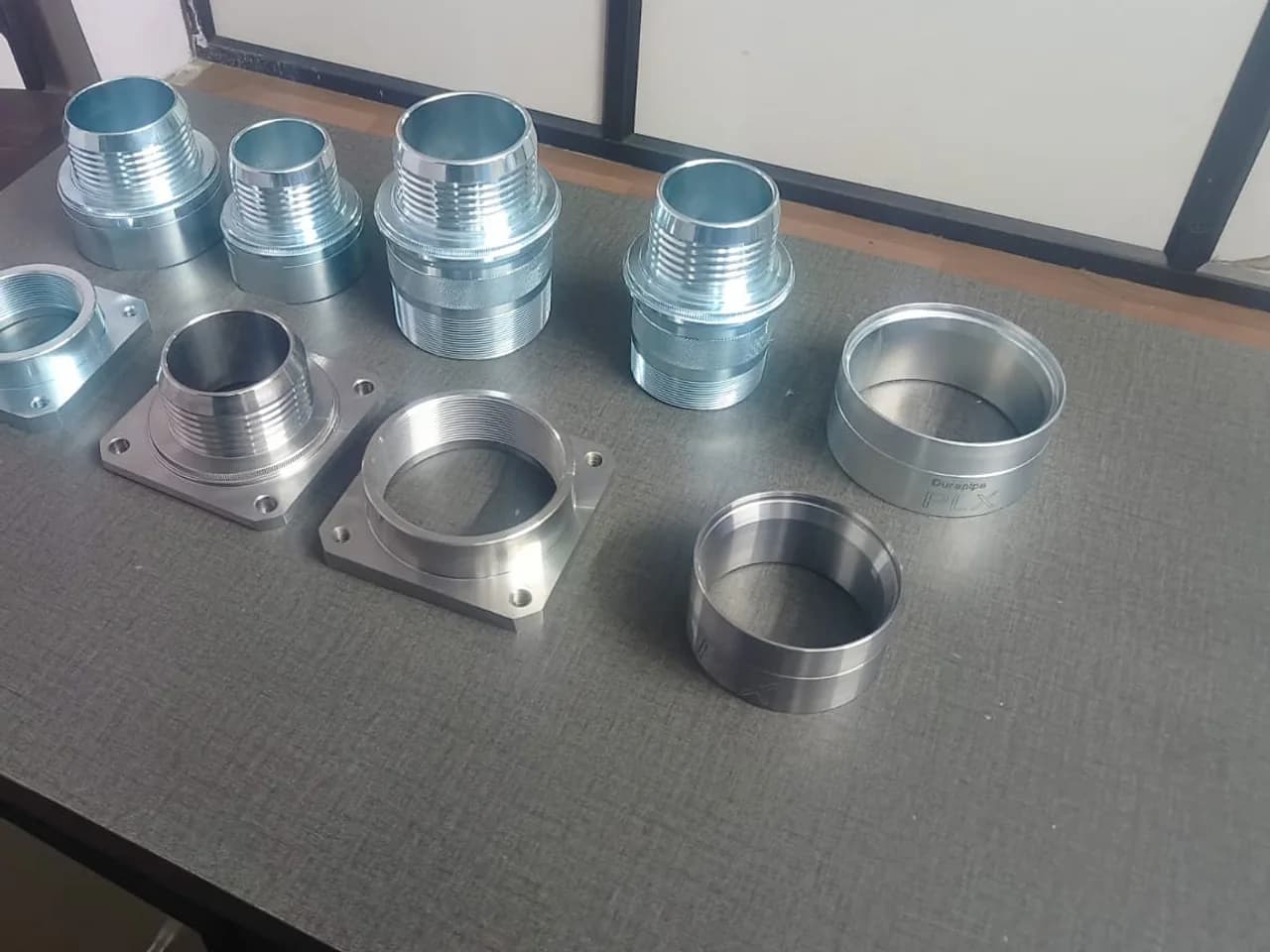

The range covers compression and flare fittings, hose barbs and nipples, plugs, elbows, tees and unions for plumbing, gas, pneumatic and instrumentation lines, in natural or plated finish.
Typical Applications
- Plumbing and sanitary connections
- LPG / CNG and gas distribution lines
- Pneumatic and hydraulic circuits
- Instrumentation and gauge fittings
- Water-treatment skid piping
Specifications
| Material grades * | CW614N (CuZn39Pb3), CW617N, IS 319 Grade I/II |
|---|---|
| Size range * | Ø3 mm – Ø65 mm bar stock |
| Threading * | BSP, BSPT, NPT, Metric, UNC/UNF — gauged |
| Tolerance * | Up to ±0.01 mm on critical dimensions |
| Finishes * | Natural, nickel, tin or chrome plating; deburred & polished |
| Pressure rating * | Up to PN16 / 232 psi (service-dependent) |
* Indicative specification — confirm against your drawing.
Product Gallery
Have a drawing in this category?
Send it across — our engineers reply with pricing, lead time and manufacturability feedback within 24 working hours.
